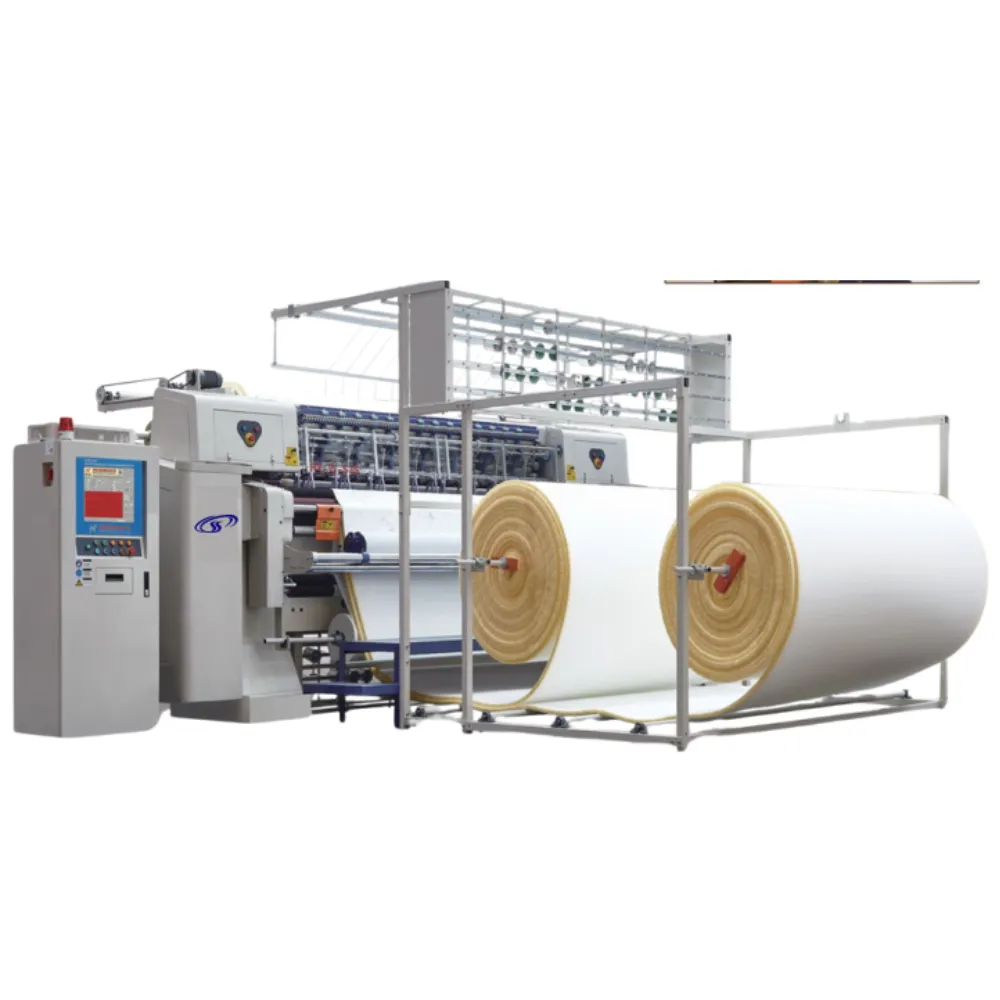

SS-W-SJ

SS-W-SJ

Features :

✅ Optimized mechanical structure for higher speed and increased production

✅ Tighter thread stitches for stronger three-dimensional quilting patterns

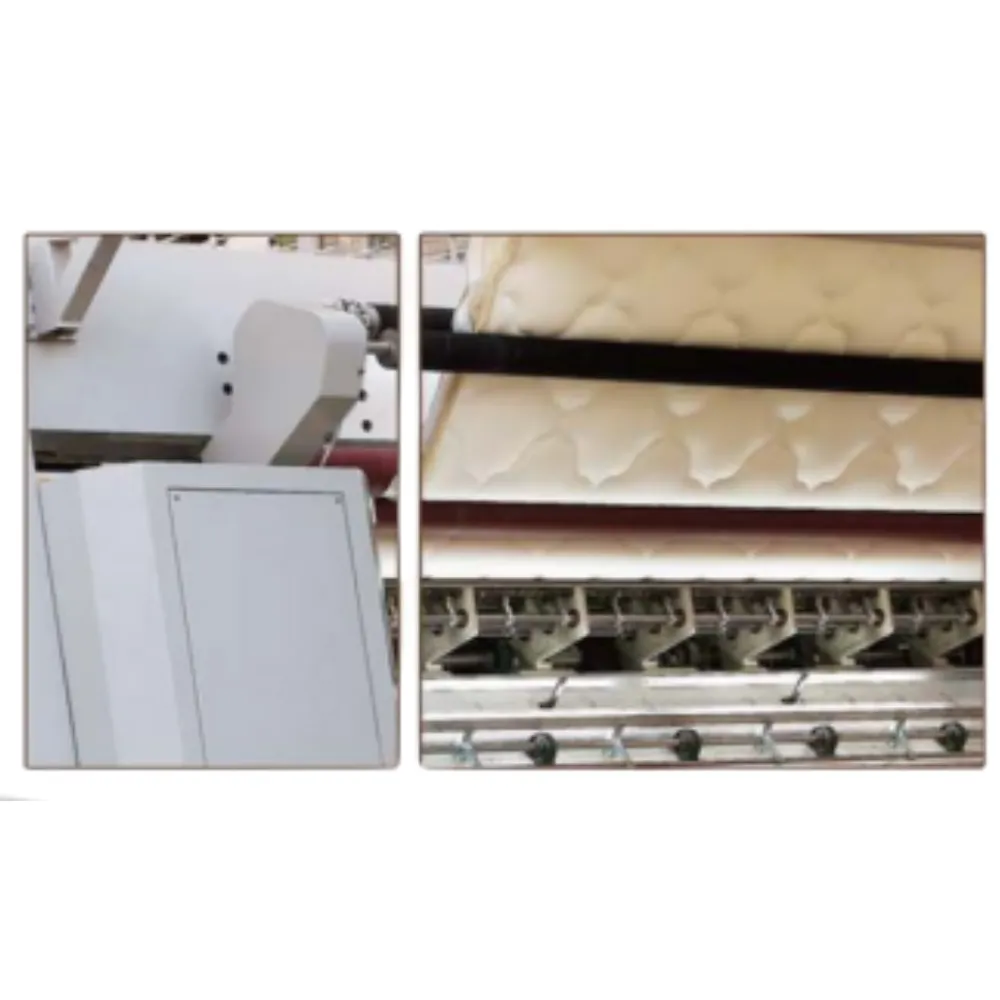

✅ Needle bar and press plate controlled by cam-free double-swinging device, preventing lubrication and material contamination

✅ Supports multi-span and independent patterns (360° and 180° quilting available)

✅ Automatic stop motion control when top or bottom thread breaks, with automatic needle-lifting and CNC speed adjustment

✅ CE Certified for safety and quality assurance

Parameter Detail
Dimension 4795 × 1670 × 2050 mm
Quilting Width 2450 mm
Space Between Needle Rows 50.8, 76.2, 127 mm (5″)
Space Between Needles 25.4 mm
X-Axis Movement Displacement 410 mm
Thickness of Quilting ≤ 80 mm (for all patterns)
Stitch Length 3 ~ 8 mm
Speed of Operation 60 ~ 300 m/hour
Model of Needle 24/180, 23/160, 22/140, 21/130
Quilting Speed 600 ~ 1200 RPM
Total Power Required 7 KW
Voltage 380V/50Hz or 220V/60Hz
Gross Weight 5000 KG
