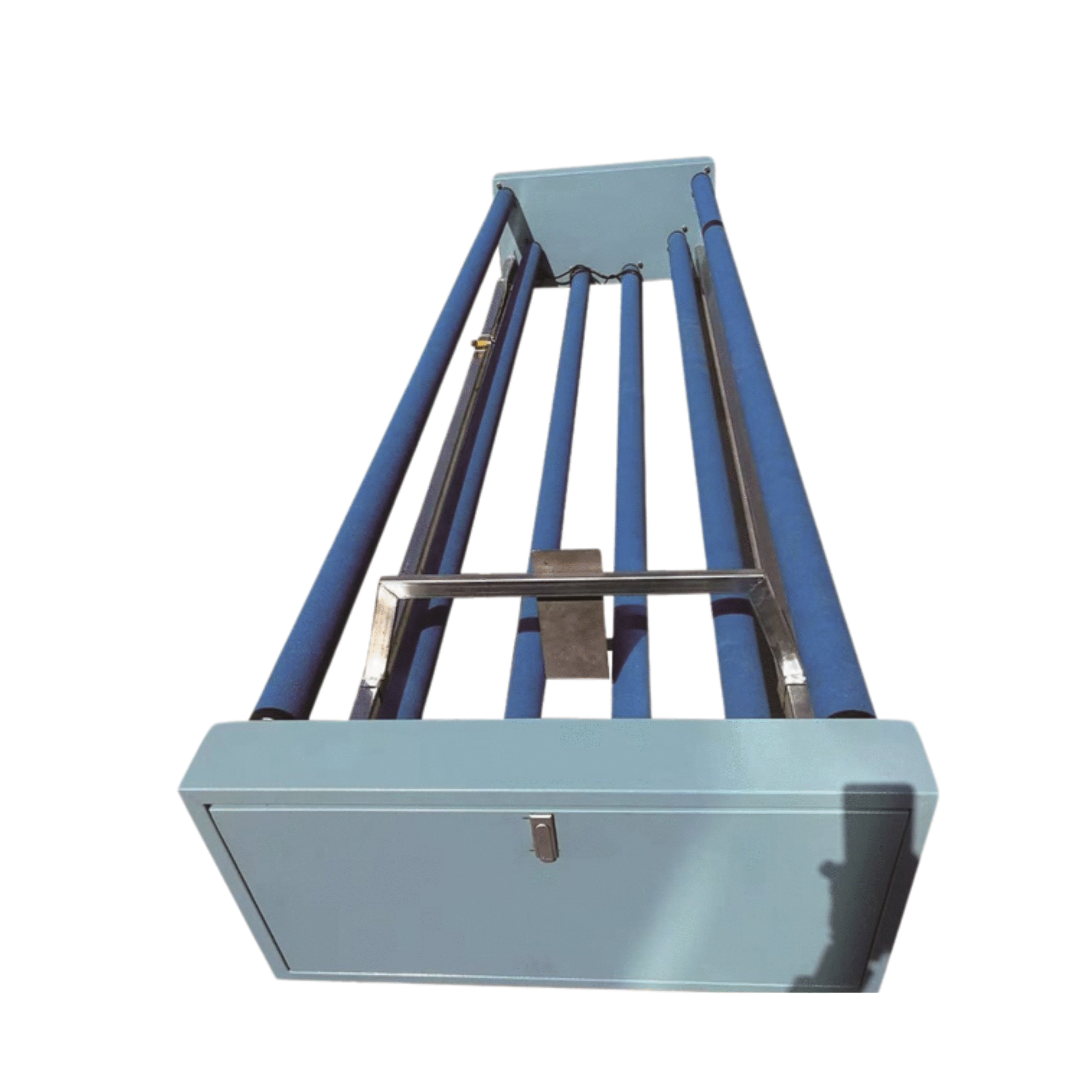

This is a fabric feeding machine, typically used in conjunction with printing, rolling, or folding machines.
The fabric feeding machine ensures continuous and aligned feeding of fabric rolls into subsequent processing machines. It helps maintain consistent tension and fabric alignment, preventing wrinkles and jams.
| Parameter | Details |
|---|---|
| Function | Feeds fabric smoothly to downstream machinery |
| Working Width | 1500mm to 3600mm (customizable) |
| Roll Diameter Input | Up to 500mm |
| Feeding Speed | 0–80 meters/min (adjustable) |
| Power Supply | 220V/380V, 50Hz/60Hz |
| Material Compatibility | Cotton, polyester, denim, blended fabrics |
| Drive Mechanism | Motor with speed control |
| Frame Construction | Mild steel or stainless steel |
| Tension Control | Built-in or optional |
| Edge Alignment System | Optional (can include edge guiding rollers/sensors) |
| Roller Type | Rubberized or PU-coated rollers |
| Typical Use | Before printing, rolling, folding, or processing |
