- ✅ Single-needle quilting machine equipped with originally European imported sewing head, reaching speeds up to 3000 RPM.
- ✅ Features automatic thread trimming, thread-broken detection, and pattern compensation.
- ✅ Adjustable presser for different material thicknesses.
- ✅ High precision quilting capable of handling complicated patterns.
- ✅ Automatic needle-lifting and power-off protection to ensure quilting continuity.
- ✅ Pattern editing and modification possible within the operating system.
- ✅ Compatible with embroidery and other quilting file formats.
- ✅ Can store more than 100,000 patterns.
- ✅ Ensures precise relative shuttle position with high-quality components.
- ✅ Supports automatic crosscutting and side cutting functions.

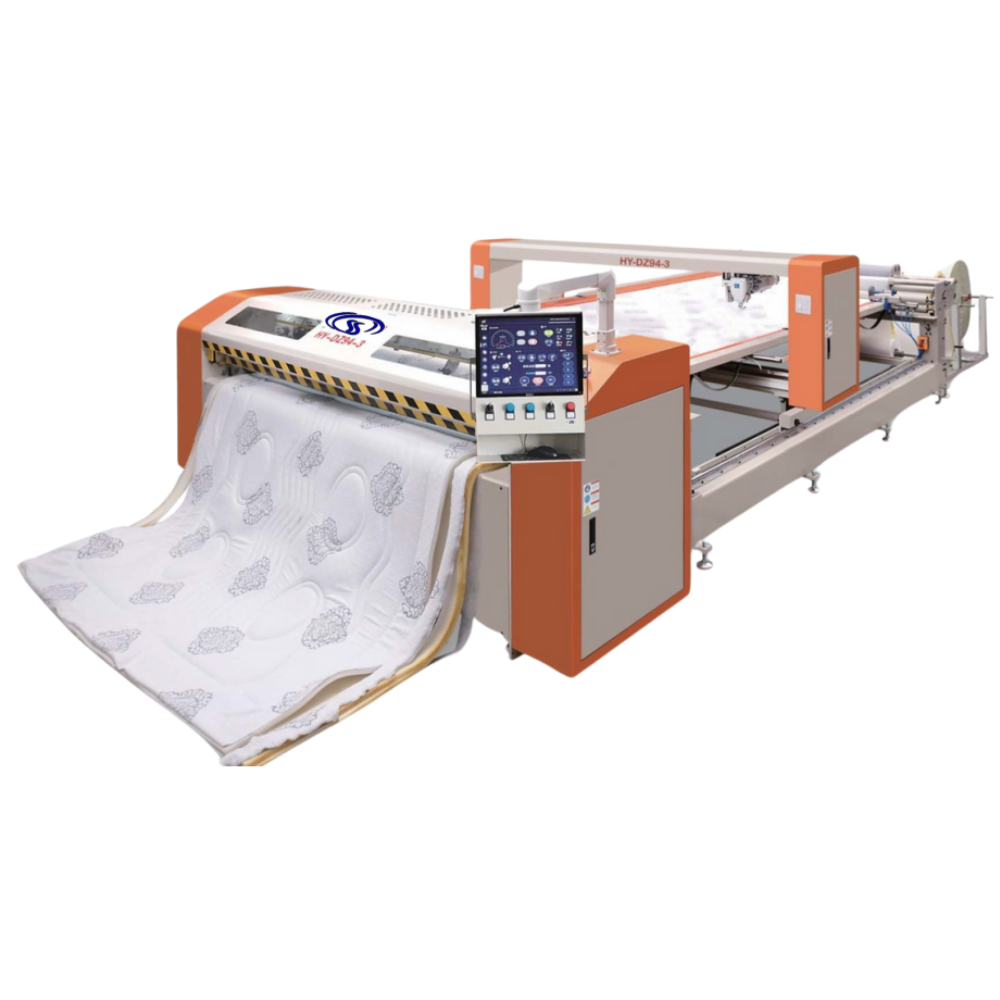

SS-DZ94-3
| Parameter | Detail |
|---|---|
| Size (L × W × H) | 10000 × 3800 × 1650 mm |
| Quilting Width | 2200 mm |
| Quilting Thickness | 80 mm |
| Needle Type | DP*17 19#, 21#, 22# |
| Step | 2 – 8 |
| Needle Speed | 3000 RPM |
| Power | 7 KW |
| Voltage | 3 Phases 380V 50HZ |
| 3 Phases 220V 60HZ | |
| Weight | 3800 KG |
