- Description:
Used to flatten and smooth wadding or fiber sheets after carding, improving texture and uniformity. It compresses and slightly heats the wadding for a refined finish before packing or quilting. -
Features:
-
Adjustable pressure and temperature
-
Conveyor system for feeding and discharge
-
Compacting unit for even thickness
-
Safety emergency stop system
-

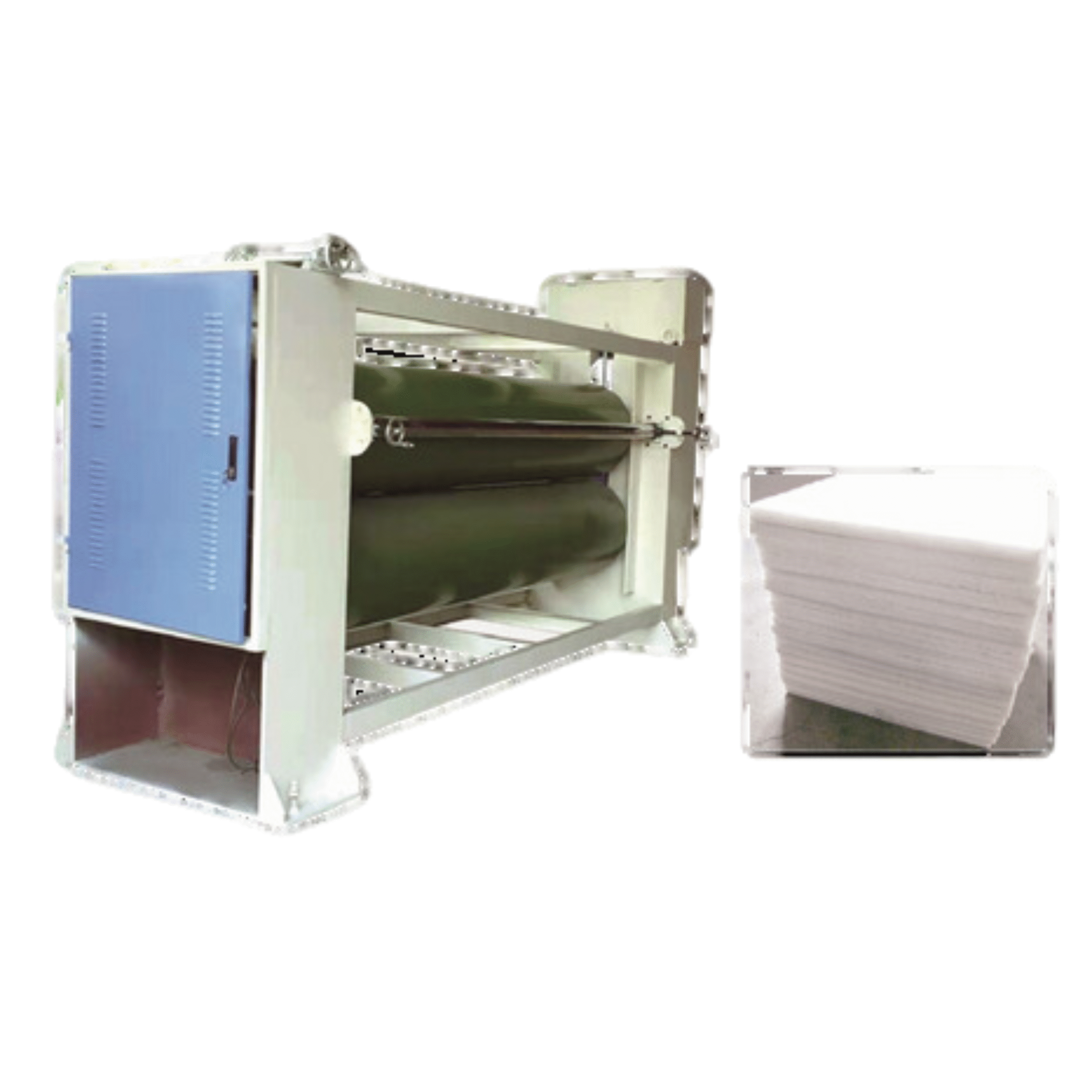

SS- 3000 Ironing Machine
Technical Parameters :
| Parameter | Specification |
|---|---|
| Model | IRON-C3000 |
| Working Width | 2000 mm |
| Roller Diameter | 300 mm (upper and lower) |
| Roller Material | Heat-resistant silicon rubber / steel |
| Temperature Range | 0–200°C |
| Working Speed | 0–20 m/min |
| Motor Power | 4.5 kW |
| Heating Method | Electric / Oil / Steam |
| Key Features | Adjustable pressure and temperature, conveyor feed system, emergency stop |
