- FEATURES
•Easily operated by pressing multi-functional buttons anytime. Timing indication present the state of quilting and its way of operation, even after the process.
so as to provide a convenient boundary limit and remedy function.
•Automatical searching function for various patterns of line marks, ie automatical adjusting screen needles from time to time.
Automatical memorial function even when the power is cut off, and return to its normal function immediately after the power is resumed.
•Four protection limits make the operation more safely.
•Automatical checking function makes the inspection of machine’s outside signals easily and conveniently.

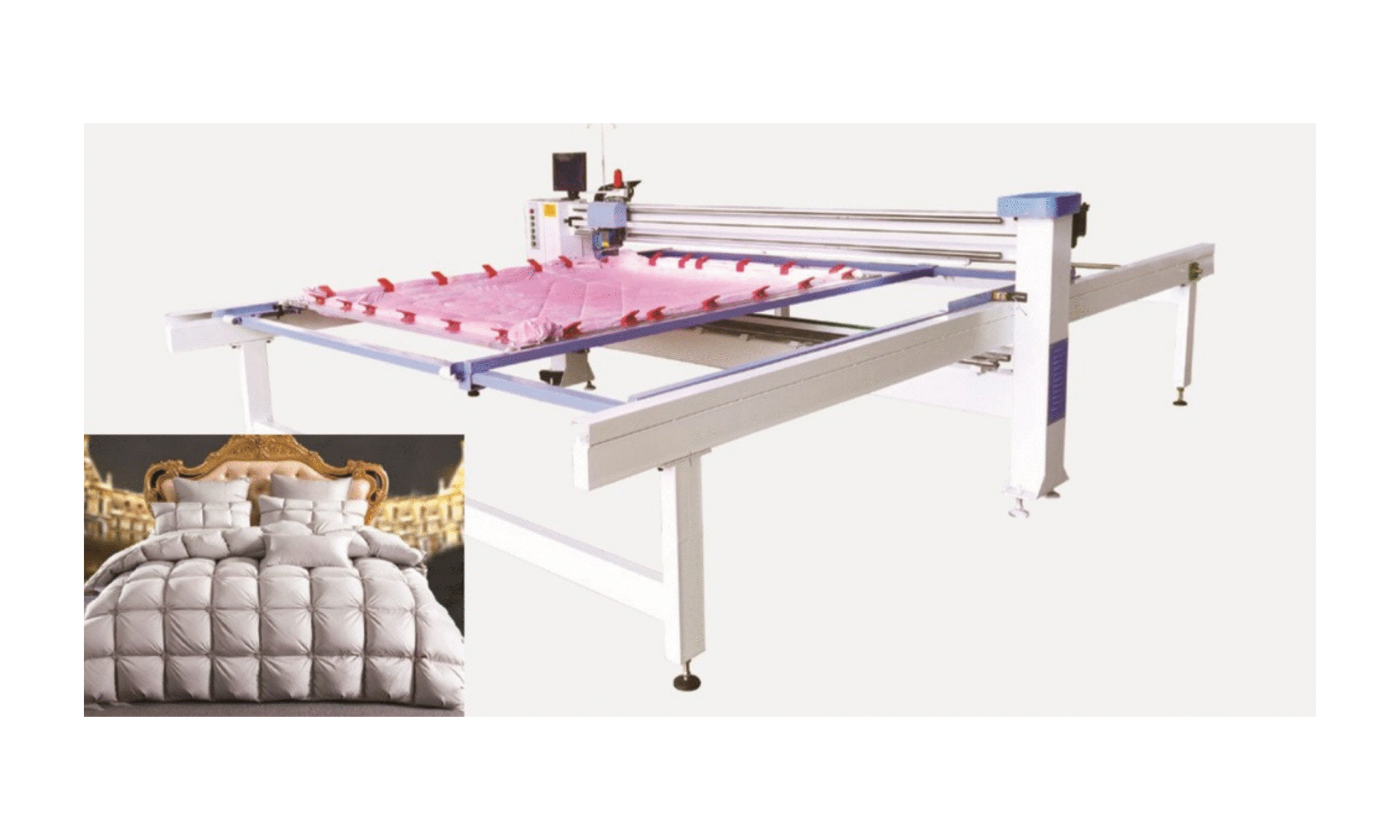

- Main Technical Parameters – SS-E Series Quilting Machines
| Model | Quilting Size | Needle Drop Size | Dimensions (L×W×H) | Weight |
|---|---|---|---|---|
| SS-E-2426 | 2.4 × 2.6 m | 2.2 × 2.4 m | 5.0 × 3.5 × 1.75 m | 650 kg |
| SS-E-2628 | 2.6 × 2.8 m | 2.4 × 2.6 m | 5.0 × 3.7 × 1.75 m | 700 kg |
| SS-E-2830 | 2.8 × 3.2 m | 2.6 × 3.0 m | 5.2 × 4.0 × 1.75 m | 750 kg |
| SS-E-3032 | 3.0 × 3.2 m | 2.8 × 3.0 m | 5.2 × 4.2 × 1.75 m | 800 kg |
- Shared Technical Specifications
| Parameter | Specification |
|---|---|
| Sewing Machine Type | Single-line style, Double-line lock stitch, Big Rotary Shuttle |
| Maximum Sewing Thickness | 1200 g/m² |
| Sewing Speed | 2000 SPM (Stitches Per Minute), Stitch Length: 2–7 mm |
| Needle Type | SINGER MR5, Size 18–22# |
| Power Supply | 220V AC, 50 Hz, 1.5 kW |
