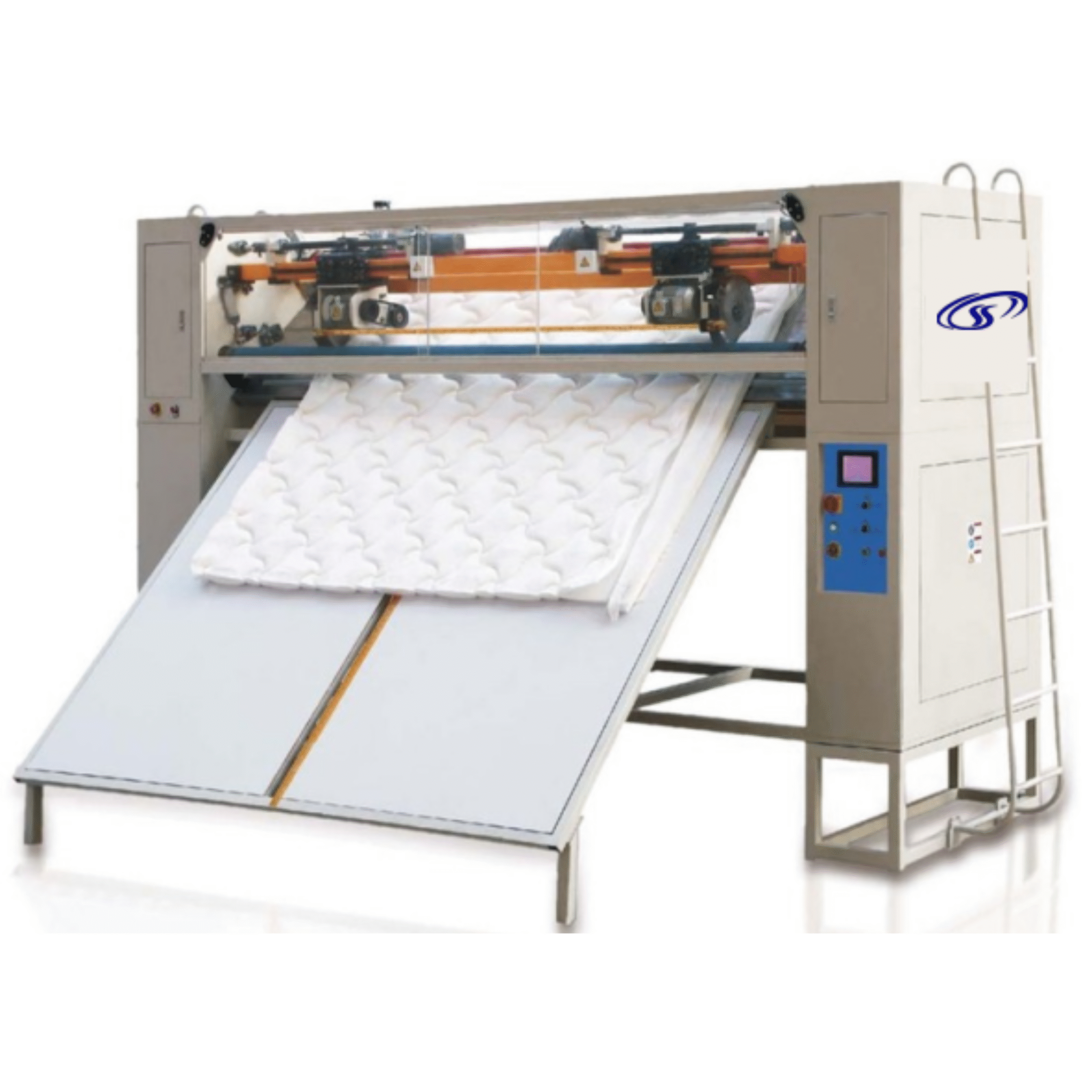

SS-QG-3

SS-QG-3

Description

✔️ 7″ Panasonic Touch Screen
Large, intuitive interface for smooth and easy operation.

✔️ CE-Certified Electrical Components
Ensures safety and guarantees long-lasting performance.

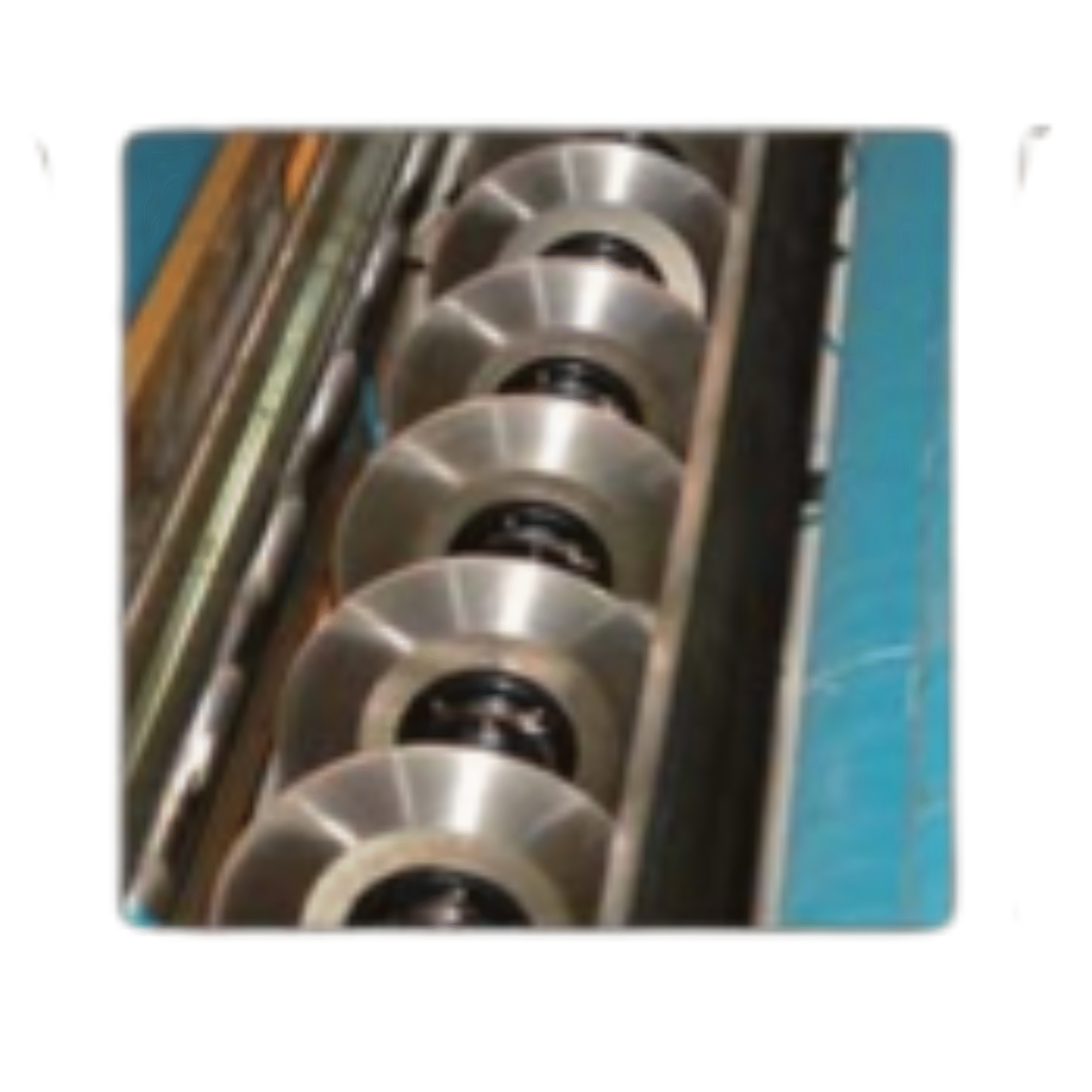

✔️ Hidden Slitting Blades
Safer and more convenient for the operator.

✔️ Electric Length & Width Controls
Allows human-friendly and precise adjustments for crosscutting.

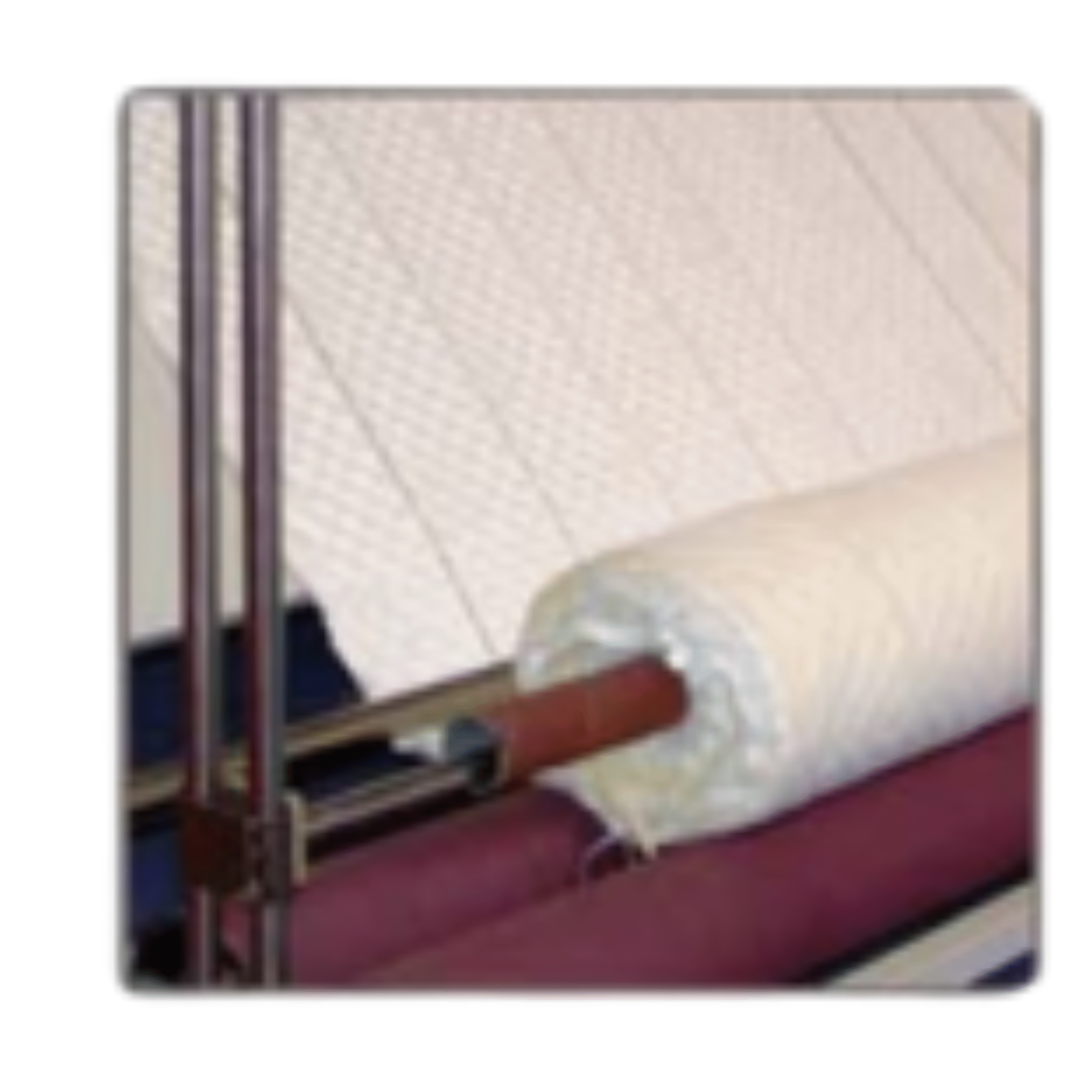

✔️ Feed-in Top with Pressure Rollers & Article Points
Even pressure distribution ensures level feeding and smooth edge trimming, especially effective for thin materials.

✔️ Y-Dimension Encoder
Accurate length measurement and capability to cut materials longer than 30 cm.

✔️ Conveyor Belt Mechanical Discharge
Enables convenient folding and reduces manual labor.

Parameter (Unit/mm) Specification
Max. X Dimension 2450 mm
Min. X Dimension 1050 mm / 45 mm (two values provided)
Max. Y Dimension 2500 mm
Min. Y Dimension 300 mm
Machine Dimensions (L×W×H) 3750 × 1330 × 2365 mm
Weight 1500 Kg
Air Pressure 0.4 ~ 0.8 Mpa
Material Thickness 3 ~ 80 mm
Speed 7.5 m/min
Power 2 Kw
