- Description:
This cutting machine is used to trim or section the nonwoven web after layering or thermal bonding. It ensures the web is cut to specified lengths or widths before final winding or further processing. - Features:
-
High-precision cutting rollers.
-
Pneumatically controlled blade mechanism.
-
Adjustable cutting length.
-
Automatic or manual operation.

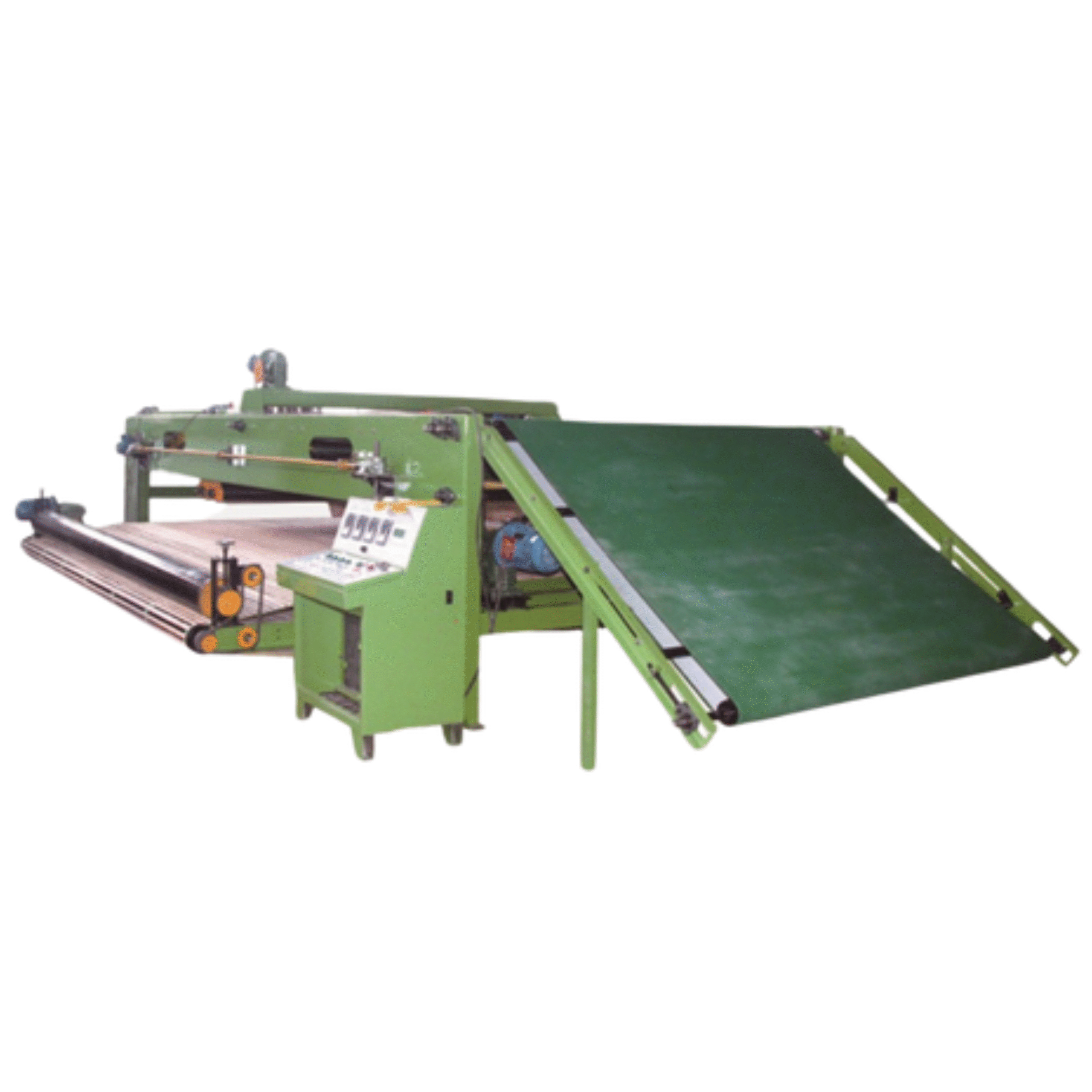

Cutting Machine – SS-CT-3000
-
Technical Parameters:
| Parameter | Specification |
|---|---|
| Cutting Width | 2000 – 3000 mm |
| Cutting Method | Rotary or Guillotine-type blades |
| Blade Control | Pneumatic or Servo |
| Cutting Accuracy | ±1 mm |
| Max Web Thickness | 80 mm |
| Drive Type | AC Motor/Servo Motor |
| Speed | Up to 60 m/min |
